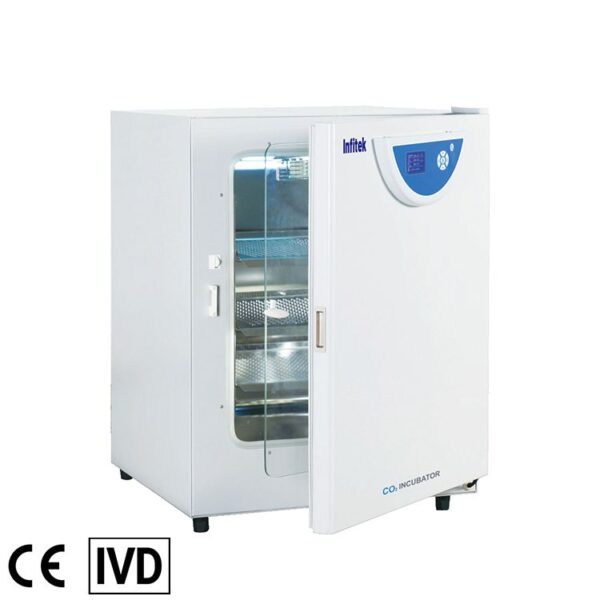

CO₂ Incubators

CO₂ Incubators



Description



CO₂ incubators are laboratory instruments used for controlled cultivation of biological cells, tissues, and bacteria. These incubators maintain stable temperature, humidity, and carbon dioxide levels, creating ideal conditions for cell culture and biological experiments. They are widely used in medicine, biology, chemistry, and agricultural research laboratories.



Types



Air-Jacketed CO₂ Incubators

Laboratory incubators designed to maintain stable environmental conditions with controlled temperature, humidity, and CO₂ concentration. These systems provide precise monitoring and recovery of CO₂ levels and temperature after door openings.

Available capacity options include 40L, 80L, 155L, 190L, and 240L.

Categories: ,
Request Product Details



Applications



• Cell culture and tissue culture

• Microbial and bacterial cultivation

• Medical and pharmaceutical research

• Biotechnology laboratories

• Chemical laboratories

• Agricultural science research



Key Features



• Temperature range: RT +5°C to 55°C

• Humidity level: greater than 90% through natural vaporization

• CO₂ concentration range: 0–20% with infrared monitoring

• Infrared CO₂ sensor for fast monitoring and accurate control

• Forced convection internal circulation system for better temperature uniformity

• HEPA filter and microbial filters to maintain sterile conditions

• Condensation prevention system on the glass door to reduce contamination risk

• Large LCD display showing temperature, CO₂ concentration and humidity

• Stackable design to maximize laboratory space utilization

• Air-jacketed heating with PID control for stable temperature regulation

• Safety alarm systems for temperature deviation, CO₂ concentration limits, and prolonged door opening

• UV sterilization status reminder for enhanced safety and contamination control







Capacity(L) 40 80 155 190 240
Circulation Mode Forced convection
Dimension

(W*D*H)

 Internal (mm) 400*286*350 400*450*500 480*530*610 520*530*690 600*630*670
External (mm) 590*440*576 590*687*790 670*767*880 708*710*1030 788*837*940
Temperature Range (℃) RT.+5~55
Fluctuation (℃) ±0.1
Resolution (℃) ±0.1
Uniformity (℃) ±0.3°C (37℃)
Recovery (Door open 30s, recovery to 37℃ ≤ 8min
Humidity Range ＞90%
Method Natural vaporization
CO2 Range 0~20%
Resolution +0.1%
Sensor IR sensor
Recovery (Door open 30s, recovery to 5%)≤3min
Heating Method Air-jacketed, PID Control
Display LCD
Material Internal 304 Stainless steel
External Cold rolled steel
Shelves(Standard / Max ) 2/4 2/4 3/6 3/6 3/6
Test Hole (mm) φ25
Safety Device Temperature limit alarm, visible& audible alarm,

Low temperature, high temperature and over-temperature alarms,

CO2 too high or too low concentration alarms,

Alarm for long door opening time,

UV sterilization working status reminder
Electricity Voltage/

Frequency

 AC 220/110V, 50/60Hz
Consumption (W) 350 500 750 750 950
N.W./G.W. (kg) 50/70 64/90 85/112 90/134 95/148
Shipping Dimension

(W*D*H) (mm)

 650*710*740 750*710*960 840*790*1070 860*860*1170 960*900*1160
Optional 1.Humidity display system
2.Shelf
3.UV Sterilization
