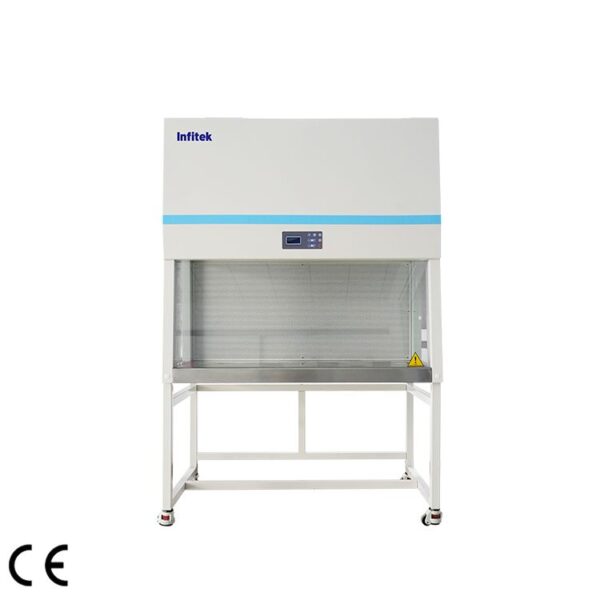

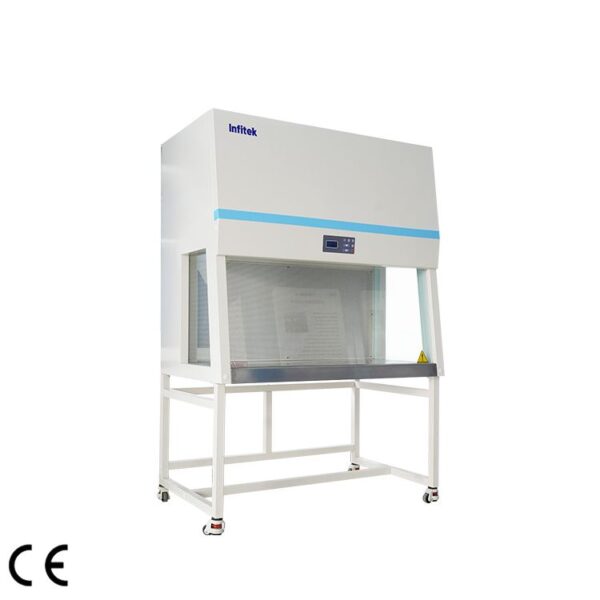

Horizontal Laminar Flow Cabinet



Description



A laminar flow cabinet is a local air purification device designed to maintain a highly clean working environment on the operating surface. It provides a continuous flow of filtered air to protect samples and processes from contamination. These cabinets are commonly used in laboratories and industries that require strict cleanliness conditions.

Horizontal laminar flow cabinets provide single-sided operation with air flowing horizontally across the work surface to maintain a controlled and sterile workspace.



Types



Horizontal Laminar Flow Cabinets

These cabinets provide horizontal airflow across the work surface with single-sided operation. They maintain a high level of cleanliness using HEPA filtration and controlled airflow velocity to ensure a sterile working environment.

Categories: ,
Request Product Details



Applications



• Laboratory research and analysis

• Biopharmaceutical laboratories

• Hospitals and medical laboratories

• Microelectronics and circuit board manufacturing

• LED optoelectronics

• Hard disk manufacturing

• Food processing laboratories

• Clean room environments requiring high cleanliness levels



Key Features



• Horizontal laminar airflow with single-sided operation

• ISO Level 5 (Class 100) cleanliness level

• HEPA filter efficiency ≥ 99.995% at 0.3 μm particle size

• Airflow velocity between 0.30 – 0.5 m/s

• Pre-filter system to extend HEPA filter life

• Working area made of SUS304 stainless steel for corrosion resistance

• Cold-rolled steel cabinet with electrostatic coating for durability

• Tempered glass front and side windows

• LCD display showing airflow velocity, timer, UV lamp time and HEPA filter running time

• UV lamp and LED lighting system

• Caster design for easy movement and positioning

• Complete alarm system including filter pressure, airflow velocity and filter replacement alerts

• Interlocking safety functions for UV lamp, fan and front window





External Dimensions

(W*D*H)

 1300*820*2000mm 1800*820*2000mm
Internal Dimensions

(W*D*H)

 1200*550*570mm 1700*550*570mm
Work Surface Height 750mm, Can be customized as needed
Airflow Velocity 0.30~0.5m/s
Material Working area: 304 stainless steel;

Main body: Cold-rolled steel with antimicrobial powder coating;

Front window: 5mm toughened glass, anti-UV.
Pre-Filter Polyester fiber
HEPA Filter Efficiency ≥99.995% at particle size of 0.3μm
Sound Emission ≤65dB(A)
Illumination 700lx
Safety Colonies Number≤0.5CFU/30min
Cleanliness Level ISO Level 5 (Class 100)
LED Lamp 12W*1 16W*1
UV Lamp 30W*1 40W*1
Electricity AC220V±10%, 50/60Hz
Rated Power (including load) 1400W 1500W
Standard Accessories Base stand, UV Lamp, LED Lamp, Waterproof socket, HEPA Filter, Pre-Filter.
Optional Accessories HEPA Filter, Pre-Filter, UV Lamp, Centrifugal Fan, Tubular Motor, Water tap, Air tap.
